Model Tree

The Model Tree panel shows every object in the scene and lets you control them individually. Open it by clicking the Model Tree button in the toolbar or pressing Alt+M.

The panel has two sections: the Editor at the top and the Model Tree at the bottom.

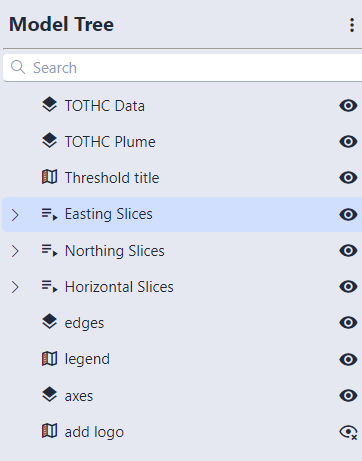

The Model Tree

The lower section lists all objects in the scene, organized in a hierarchy:

Visibility controls — The eye icons on the right show or hide individual objects. Clicking the eye on a group or sequence toggles visibility for everything inside it.

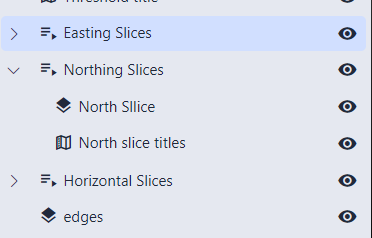

Expanding groups — Groups and sequences can be expanded to reveal their contents. Click any object to select it and edit its properties in the Editor above.

Bulk actions — The three-dot menu at the top right lets you show all, hide all, expand all, or collapse all objects.

Editing Object Properties

Select an object in the tree to open its properties in the Editor panel. The available controls depend on the object type.

Common Controls

Data Controls

These appear when the selected object contains analytical data (such as contamination values):

Sequence Controls

When a sequence is selected, the editor shows its current state and lets you step through states or change them directly:

You can also favorite a sequence from here by clicking its star icon to add it to the toolbar.

Object Types
