Products: EVS Pro
The Environmental Visualization System (EVS-Pro) product line which began 25 years ago is retired as of December 2015. We provide support for migrating to Earth Volumetric Studio for all users with current subscriptions.
EVS Pro was C Tech’s original product for state-of-the-art analysis, visualization and animation. EVS Pro began in 1991 and was available through 2015. It included advanced gridding, model building, output options, geostatistics capabilities, animation and GIS functions to accommodate litigation support, public relations and the more demanding requirements of earth science professionals. Additional features include high level animation support, terrain fly-over, advanced geologic modeling, interactive fence-diagrams, 4DIM (required a license 4DIM player), database connectivity, and much more.
EVS Pro Combined:
- Site wells, borings & measured data
- Site geologic observations
- Site buildings (3D or outlines)
- Site roads, topography, etc.
- Aerial photographs
- Soil contamination
- Ground water contamination
- Ground water flow
- Lakes, rivers, & ocean data
- Air and/or noise pollution levels

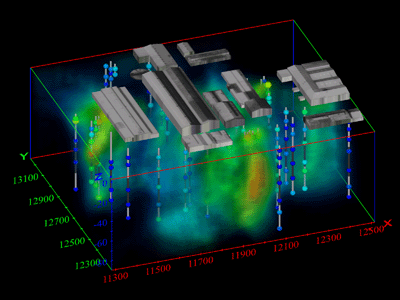

Volume Rendering EVS Pro’s volume rendering offered another fully three-dimensional visualization technique for representing contaminant plumes.

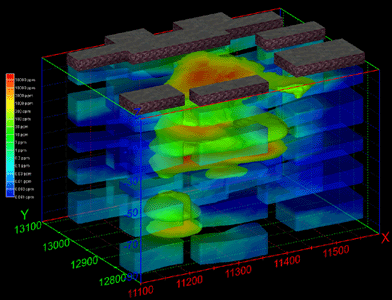

Area Cut & Transparency
EVS Pro’s area cutting function and transparency were used to create the visualization to the right which shows the contaminant levels along the downward projected building outlines. The five geologic units are exploded to reveal the 30 ppm plume in each layer.

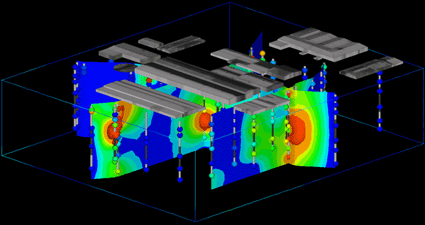

Interactive Fence Diagrams
EVS Pro allowed you to interactively create fence diagrams by slicing through true 3D models representing chemistry and/or geology.
