Using 3D PDF Converter

The C Tech 3D PDF Converter creates interactive 3D PDF documents from EVSPDF files exported from Earth Volumetric Studio. The generated PDFs can be viewed in any PDF reader that supports 3D content.

Before you can use the converter, you must have an active license. See Installation for setup and activation instructions.

Quick Start

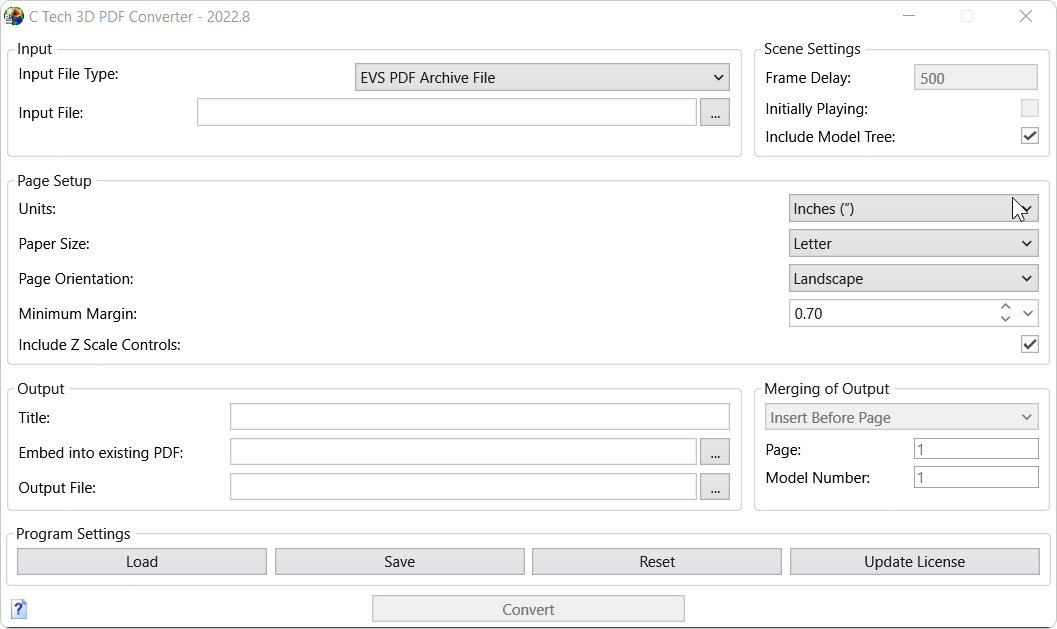

  1. Open the application
  2. In the Input section, select your .evspdf file
  3. Adjust page and output settings as needed
  4. In the Output section, choose where to save the PDF
  5. Click Convert at the bottom of the sidebar

Sections

The application is organized into the following sections, accessible from the sidebar on the left.

  • Input

    Select your input file and configure model centering

  • Page

    Configure page size, orientation, margins, and PDF controls

  • Output

    Set the output file, merge into existing PDFs, and manage settings

  • Settings

    Save, load, and reset converter settings using the gear icon in the title bar

  • Licensing

    Activate or renew your C Tech 3D PDF Converter license

  • Converting

    Start the conversion and understand the result

  • Theme

    Switch between light and dark themes
